Bullet Female
Download Brochure
Bullet Female
Technical Specification
Material Brass
Reference standard Indian Standards
Surface Tin-plated to protect against corrosion
Minimum operating temperature -20 °C
Maximum operating temperature 80 °C
Features
- Annealed material optimizes material and crimping properties
- ETP Electrolytic Grade Copper.
- Tin-plated 5 micron plus to protect against corrosion.
- Crack free crimping.
- Bur free connection surface.
- Lowest millivolt drop for DC current application.
- Simple and safe connection.
- Terminate power cables in high-voltage applications.
- Provided with inspection hole to ensure the conductor has been fully inserted before crimping is done.
- Flat contact surface to avoid hotspot.

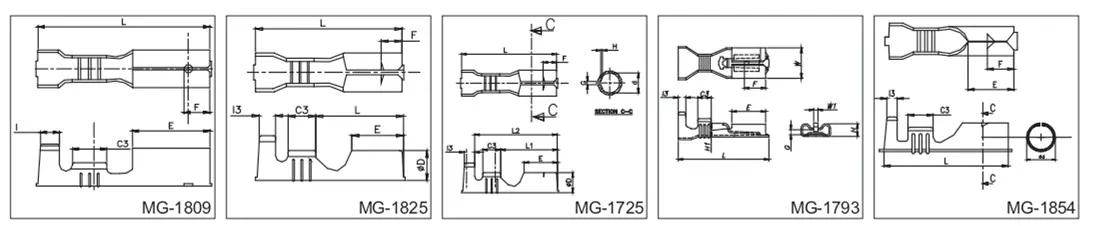

MG CAT |
TAB |
Cable Size mm2 |
Description |
L |
H |
W |
APPLIC- ABLE MATING TERMINAL |
MATE- RIAL |
"STD PACKING QTY.(NOS) CHAIN” |
|---|---|---|---|---|---|---|---|---|---|
| No. | Size mm | ||||||||
| MG-1809 | Ф 3.96 | 0.5 - 1.5 | Bullet Female | 20 | 4.5 | 4.5 | 1808 | BRASS | 7000 |
| MG-1825 | Ф 3.96 | 0.75 - 2.0 | Bullet Female (CB-104) | 17.7 | 4.6 | 4.6 | 1808 | BRASS | 7000 |
| MG-1725 | Ф 3.96 | 0.5 - 1.0 | 1825 Small Barrel | 17.7 | 4.6 | 4.6 | 1808 | BRASS | 7000 |
| MG-1793 | Ф 3.96 | 0.5 - 0.85 | 1893 Small Barrel | 20 | 4.6 | 4.6 | 1808 | BRASS | 4000 |
| MG-1854 | Ф 3.6 | 0.5 - 1.0 | Bullet Female (CB-103) | 17.5 | 4.1 | 4.1 | 1885 | BRASS | 8000 |
