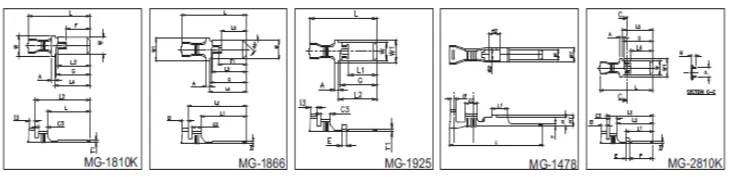

Male for Connector Locking
Download Brochure
Male for Connector Locking
Technical Specification
Material Brass
Reference standard Indian Standards
Surface Nickel-plated to protect against corrosion
Minimum operating temperature -20 °C
Maximum operating temperature 80 °C
Features
- Annealed material optimizes material and crimping properties
- ETP Electrolytic Grade Copper.
- Tin-plated 5 micron plus to protect against corrosion.
- Crack free crimping.
- Bur free connection surface.
- Lowest millivolt drop for DC current application.
- Simple and safe connection.
- Terminate power cables in high-voltage applications.
- Provided with inspection hole to ensure the conductor has been fully inserted before crimping is done.
- Flat contact surface to avoid hotspot.
MG CAT |
TAB |
Cable Size mm2 |
Description |
L |
H |
W |
APPLIC- ABLE MATING TERMINAL |
MATE- RIAL |
"STD PACKING QTY.(NOS) CHAIN” |
|---|---|---|---|---|---|---|---|---|---|
| No. | Size mm | ||||||||
| MG-1810K | 6.0 × 0.8 | 0.5 - 1.5 | 6.0 × 0.80 MALE | 25 | 0.8 | 6 | 1967 | BRASS | 5000 |
| MG-1866 | 6.0 × 0.8 | 1.5 - 3.0 | 6.0 × 0.80 MALE | 25 | 0.8 | 6 | 1967 | BRASS | 4000 |
| MG-1925 | 6.0 × 0.8 | 0.5 - 0.85 | 6.0 × 0.80 MALE | 25 | 0.8 | 6 | 1967 | BRASS | 6000 |
| MG-1478 | 2.3 × 0.6 | 0.5 - 1.0 | 2.3 × 0.60 MALE | 23.8 | 0.6 | 2.25 | 1891 | BRASS | 4000 |
| MG-2810K | 6.0 × 0.8 | 0.5 - 1.5 | 6.0 × 0.80 MALE | 25 | 0.8 | 6 | 1967 | PHOS.BRO | 5000 |
*All dimensions are in mm
