Male with Lancing (Terminal Lock)
Download Brochure
Male with Lancing
Technical Specification
Reference standard Indian Standards
Minimum operating temperature -20 °C
Maximum operating temperature 80 °C
MG CAT |
TAB |
Cable Size mm2 |
Description |
L |
H |
W |
APPLIC- ABLE MATING TERMINAL |
MATE- RIAL |
"STD PACKING QTY.(NOS) CHAIN” |
|---|---|---|---|---|---|---|---|---|---|

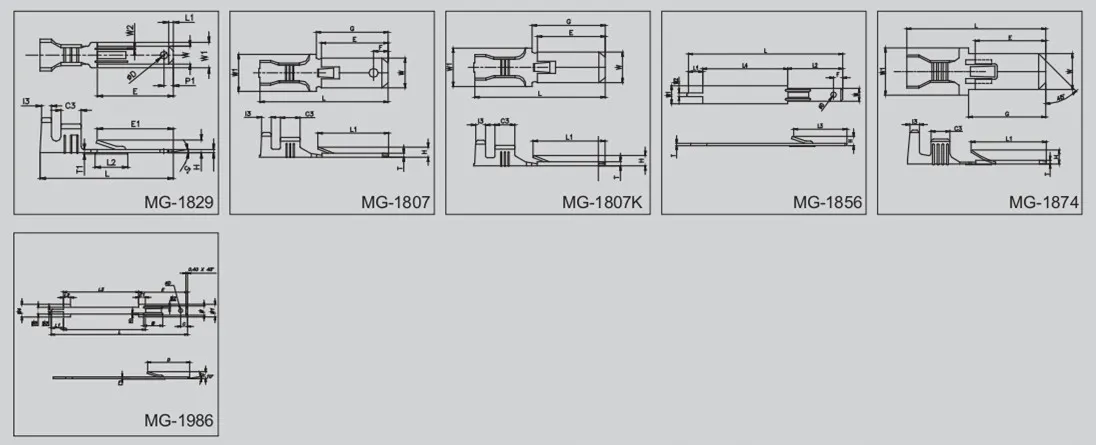

| No. | Size mm | ||||||||
| MG-1829 | 2.8 × 0.5 | 0.5 - 1.25 | 2.8 × 0.50 Male | 20.7 | 0.5 | 2.8 | 1828 | BRASS | 10000 |
| MG-1807 | 6.0 × 0.8 | 0.5 - 1.5 | 6.0 × 0.80 Male | 24.7 | 0.8 | 6 | 1970 | BRASS | 5000 |
| MG-1807K | 6.0 × 0.8 | 0.5 - 1.5 | 6.0 × 0.80 Without Hole | 24.7 | 0.8 | 6 | 1970 | BRASS | 5000 |
| MG-1856 | 2.8 × 0.5 | N.A. | 2.8 × 0.50 Male Without Barrel | 34 | 0.5 | 2.8 | 1828 | BRASS | 2,000(L) |
| MG-1874 | 7.6 × 0.8 | 2.0 - 4.0 | 7.6 × 0.80 Male | 29.6 | 0.8 | 7.6 | 1863 | BRASS | 2000 |
| MG-1986 | 2.8 × 0.5 | N.A. | 2.8 × 0.50 Long Male | 39 | 0.5 | 2.8 | 1828 | BRASS | 2,000(L) |
