Snap on Female Angle Fasteners
Technical Specification
Material Brass
Reference standard Indian Standards
Surface Nickel-plated to protect against corrosion
Minimum operating temperature -20 °C
Maximum operating temperature 80 °C
Features
- Annealed material optimizes material and crimping properties
- ETP Electrolytic Grade Copper.
- Tin-plated 5 micron plus to protect against corrosion.
- Crack free crimping.
- Bur free connection surface.
- Lowest millivolt drop for DC current application.
- Simple and safe connection.
- Terminate power cables in high-voltage applications.
- Provided with inspection hole to ensure the conductor has been fully inserted before crimping is done.
- Flat contact surface to avoid hotspot.
MG CAT |
TAB |
Cable Size mm2 |
Description |
L |
H |
W |
APPLIC- ABLE MATING TERMINAL |
MATE- RIAL |
"STD PACKING QTY.(NOS) CHAIN” |
|---|---|---|---|---|---|---|---|---|---|

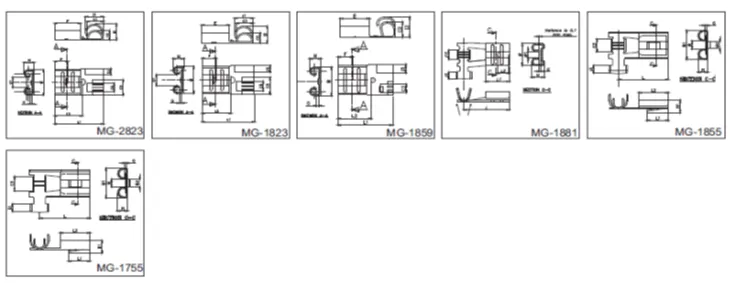

| No. | Size mm | ||||||||
| MG-2823 | 6.3 × 0.8 | 1.0 - 2.5 | 6.3 × 0.80 Angle Fastener | 15 | 3 | 8.15 | 1969 | PHOS/BRO | 1,250(L) |
| MG-1823 | 6.3 × 0.8 | 1.0 - 2.5 | 6.3 × 0.80 Angle Fastener | 15 | 3 | 8.15 | 1969 | BRASS | 1,250(L) |
| MG-1859 | 4.8 × 0.5 | 0. 5 - 1.0 | 4.8 × 0.50 Angle Fastener Close | 11.5 | 2.35 | 6 | 1883 | BRASS | 5000 |
| MG-1881 | 6.3 × 0.8 | 0.75 - 1.5 | 6.3 × 0.80 Female | 16.2 | 3.35 | 7.5 | 1969 | BRASS | 3000 |
| MG-1855 | 8.0 × 0.8 | 0.75 - 2.5 | 8.0 × 0.80 Flasher | 18.5 | 3.2 | 9 | N.A. | BRASS | 2000 |
| MG-1755 | 8.0 × 0.8 | 0.5 - 0.75 | 8.0 × 0.80 Flasher | 17.5 | 3.2 | 9 | N.A. | BRASS | 2000 |
